In any heavy-lifting environment—whether it is a massive bridge deck being hoisted into position, a gantry crane loading containers at a port, or a tower crane swinging materials across a construction site—few components play a more critical role than the crane cable. It is the element that directly connects the lifting mechanism to the load. In essence, the entire safety, efficiency, and reliability of the lifting operation depend on it.

Crane cables must withstand extreme tension, dynamic bending, environmental exposure, vibration, shock loads, and continuous cyclic fatigue. Unlike general-purpose steel wire ropes or electrical cables used in mild conditions, crane cables are engineered with sophisticated structures, precise material compositions, and strict manufacturing standards to ensure failure-free performance during the harshest operations.

Crane Cables: Definition and Core Functions

What Is a Crane Cable?

A crane cable refers to any cable—mechanical or electrical—specifically engineered for use in lifting machinery. Depending on its function, a crane cable may serve as:

  • A load-bearing cable (e.g., wire rope used for hoisting)

  • A drive cable used on reeling drums or festoon systems

  • A power and control cable supplying electricity and signal transmission to the moving crane components

The term “crane cable” is therefore an umbrella covering two major classes:

  1. Steel Wire Rope Crane Cables – mechanical lifting, pulling, and load support

  2. Electrical Crane Cables – supplying power, control, and communication to cranes

Both categories are essential. The wire rope handles the physical lifting, while the electrical cable enables the crane to operate, sense, move, and communicate.

Types of Crane Cables

Steel Wire Rope (Mechanical Crane Cables)

These are the most commonly recognised crane cables. They provide:

  • Tensile strength to lift heavy loads

  • Flexibility to bend around pulleys

  • Resistance to crushing, abrasion, and fatigue

Common steel wire rope types used in cranes include:

• 6×19, 6×37, 6×61 constructions

These offer different balances between strength and flexibility.

• Compacted strand wire ropes

Compaction increases surface hardness, tensile strength, and resistance to deformation.

• Rotation-resistant wire ropes

Often used in tower cranes, mobile cranes, and bridge erecting machines. They minimise torque buildup.

• Plastic-filled (PIWR) ropes

A polymer layer increases lifetime by absorbing shock loads and reducing internal wire abrasion.

• High-strength galvanised or stainless ropes

Essential for marine, offshore, and corrosive environments.

Electrical Crane Cables

Electrical crane cables transport power and signals between moving parts of lifting machinery. Categories include:

• Reeling cables

Used on cable drums that move as cranes extend or retract.

• Festoon cables (flat or round)

Used on track-mounted festoon systems.

• Pendant cables

Supplying power to hoists or trolleys.

• Control cables & signal cables

Carrying low-voltage signals for sensors, limit switches, measurement devices, and automation systems.

• Data transmission cables

For industrial Ethernet, CAN bus, encoder signals, anti-sway control, and remote crane monitoring.

Key features include:

  • High flexibility

  • Torsion resistance

  • Oil and UV resistance

  • Flame retardance

  • High mechanical durability

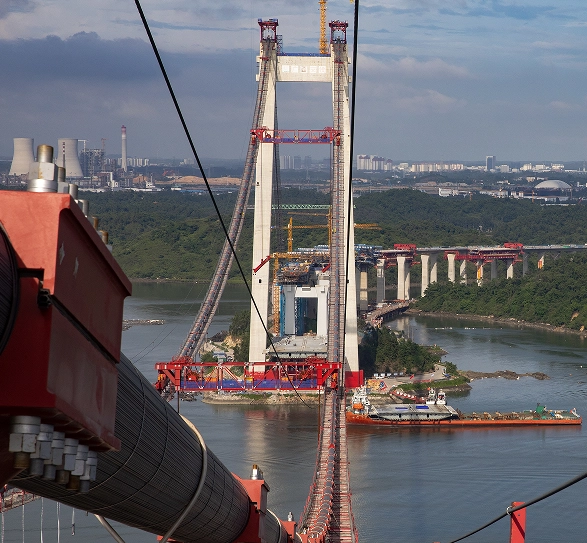

Cable Crane
Cable Crane

Structural Design of Crane Cables

Structure of Steel Wire Rope Crane Cables

A typical steel wire rope includes:

  • Individual steel wires

  • Strands twisted together

  • Core material (fibre core, steel core, or plastic core)

  • Outer layer construction

Crane wire ropes use advanced designs such as:

• Multi-layered strands

Increase flexibility and load distribution.

• Plastic-impregnated cores

Reduce internal friction and water ingress.

• Compacted outer strands

Increase surface density, resistance to crushing, and improve drum winding.

• Special lubricants

Reduce friction, improve fatigue resistance, and prevent corrosion.

Structure of Electrical Crane Cables

Electrical crane cables consist of:

  • Conductors (fine-stranded copper)

  • Insulation materials (PVC, rubber, PUR, or special thermoplastic elastomers)

  • Filler and textile reinforcements

  • Shielding layers for signal cables

  • Outer jacket engineered for extreme mechanical stress

High-performance crane cables feature:

• Torsion-resistant design

Critical for tower cranes where the cable rotates with the slewing mechanism.

• High-flex copper conductors

Designed for millions of bending cycles.

• PUR jackets

Offer exceptional abrasion, cut, and tear resistance.

• Reinforced fillers

Maintain shape during movement to prevent conductor damage.

Material and Mechanical Properties

Steel Wire Rope Materials

Crane wire ropes use:

  • High-carbon steel

  • Alloy steel with added chromium, manganese, or molybdenum

  • Galvanised or stainless coatings

  • Special polymer coatings (for plastic-filled designs)

Mechanical properties include:

  • High tensile strength (1770–2160 MPa)

  • High fatigue resistance

  • Strong abrasion resistance

  • High impact toughness

  • Dimensional stability during drum winding

Electrical Crane Cable Materials

Electrical crane cables use advanced materials to meet extreme environmental needs:

Insulation Materials

  • PVC (economical, flame-retardant)

  • Rubber (high flexibility, vibration resistance)

  • EPR/EPDM (high heat resistance)

  • PUR (abrasion-resistant, oil-resistant, UV-resistant)

Jacket Materials

  • Chloroprene rubber

  • PUR (commonly used for reeling and festoon cables)

  • TPE/TPU for extreme flexibility

Performance Features

  • Temperature resistance: −40°C to +90°C (or higher for special applications)

  • Oil, grease, UV, and saltwater resistance

  • Flame retardance and low smoke emission

  • High mechanical load-bearing

  • Torsion tolerance up to ±180° per meter (for tower cranes)

Applications of Crane Cables

Crane cables are used across countless industries. The image you provided, which shows a massive segment being lifted during bridge construction, is a perfect example of heavy-duty crane cable usage.

Construction and Infrastructure Projects

  • Tower cranes

  • Bridge deck erection machines

  • Segment lifters

  • Gantry cranes

  • Launching gantries for viaducts

  • Concrete precast yard cranes

Marine and Port Operations

  • Container gantry cranes

  • Ship-to-shore cranes

  • Rail-mounted yard cranes

  • Offshore lifting systems

  • Winches and mooring equipment

Mining and Heavy Industry

  • Mining hoist systems

  • Excavators and draglines

  • Steel mill cranes

  • Large foundry cranes

Logistics, Warehousing, and Industrial Automation

  • Overhead cranes

  • Electrified hoists

  • Automated crane systems

  • AS/RS systems requiring flexible data cables

Renewable Energy and Offshore Wind

  • Tower crane lifting for turbine installation

  • Cable-reeling systems for maintenance platforms

  • Load-bearing ropes in heavy offshore lifts

Standards and Specifications

Crane cables must meet internationally recognised standards to ensure safety and reliability.

Standards for Wire Ropes

  • ISO 4309 – Crane wire rope selection, installation, and maintenance

  • EN 12385 – Steel wire ropes for general purposes

  • API and ASTM standards for tensile strength and mechanical properties

Standards for Electrical Crane Cables

  • IEC 60245 / IEC 60227 – Rubber and PVC insulated cables

  • IEC 60332 – Flame retardance

  • EN 50525 – Flexible electrical cables

  • VDE standards for reeling and festoon cables

  • EN 50214 & EN 50363 – Crane-resistant rubber and elastomer cables

Installation Guidelines

Proper installation ensures maximum cable lifespan and safety.

Mechanical Wire Rope Installation

  • Avoid sharp bending radius

  • Pre-tension the rope

  • Ensure correct drum winding direction

  • Maintain proper lubrication

  • Avoid cross-winding and crushing

Electrical Cable Installation

  • Maintain the correct minimum bending radius

  • Avoid over-tensioning

  • Ensure clean routing without sharp edges

  • Use appropriate cable clamps and rollers

  • Avoid twisting—especially for reeling cables

Inspection and Maintenance

Mechanical Rope Inspections

Check for:

  • Broken wires

  • Flattening or crushing

  • Corrosion

  • Kinks or twists

  • Diameter reduction

  • Core protrusion

Electrical Cable Inspections

Look for:

  • Jacket abrasion or cracks

  • Conductor breakage

  • Shield damage

  • Insulation degradation

  • Deformation due to tension

Routine inspections prevent catastrophic failures.

Common Failure Modes

Mechanical Cable Failures

  • Fatigue from repeated bending

  • Overloading

  • Corrosion

  • Wear from sheaves or drums

  • Torque-induced rotation failure

Electrical Cable Failures

  • Jacket tearing

  • Conductor fatigue

  • Excessive torsion stress

  • Environmental degradation (oil, UV, chemicals)

Future Trends in Crane Cable Technology

High-Strength Lightweight Wire Ropes

Using ultra-high-strength alloys or synthetic fibre cores.

Smart Crane Cables

Integration of sensors for:

  • Load monitoring

  • Real-time wear detection

  • Predictive maintenance

Environmentally Enhanced Jackets

For offshore wind, deep-sea construction, and desert environments.

Fire-Resistant and Halogen-Free Designs

Increasingly important for industrial safety and tunnel construction.

A crane cable may appear simple, but it’s actually composed of a number of complex components that together define the safety and capabilities of crane operations. From steel wire that can carry out hundreds of pounds to complex electrical cables that transmit power and control signals to moving machinery, crane cables are crucial to modern industry.

Understanding their composition, materials, purposes, installation, and maintenance is crucial to ensuring long-term effectiveness and preventing failures that would lead to equipment damage or safety risks.
